TRX LED Grille Badge – Multicolor RGB Flow Series (Bluetooth App Controlled) | RAM TRX 2020–2024

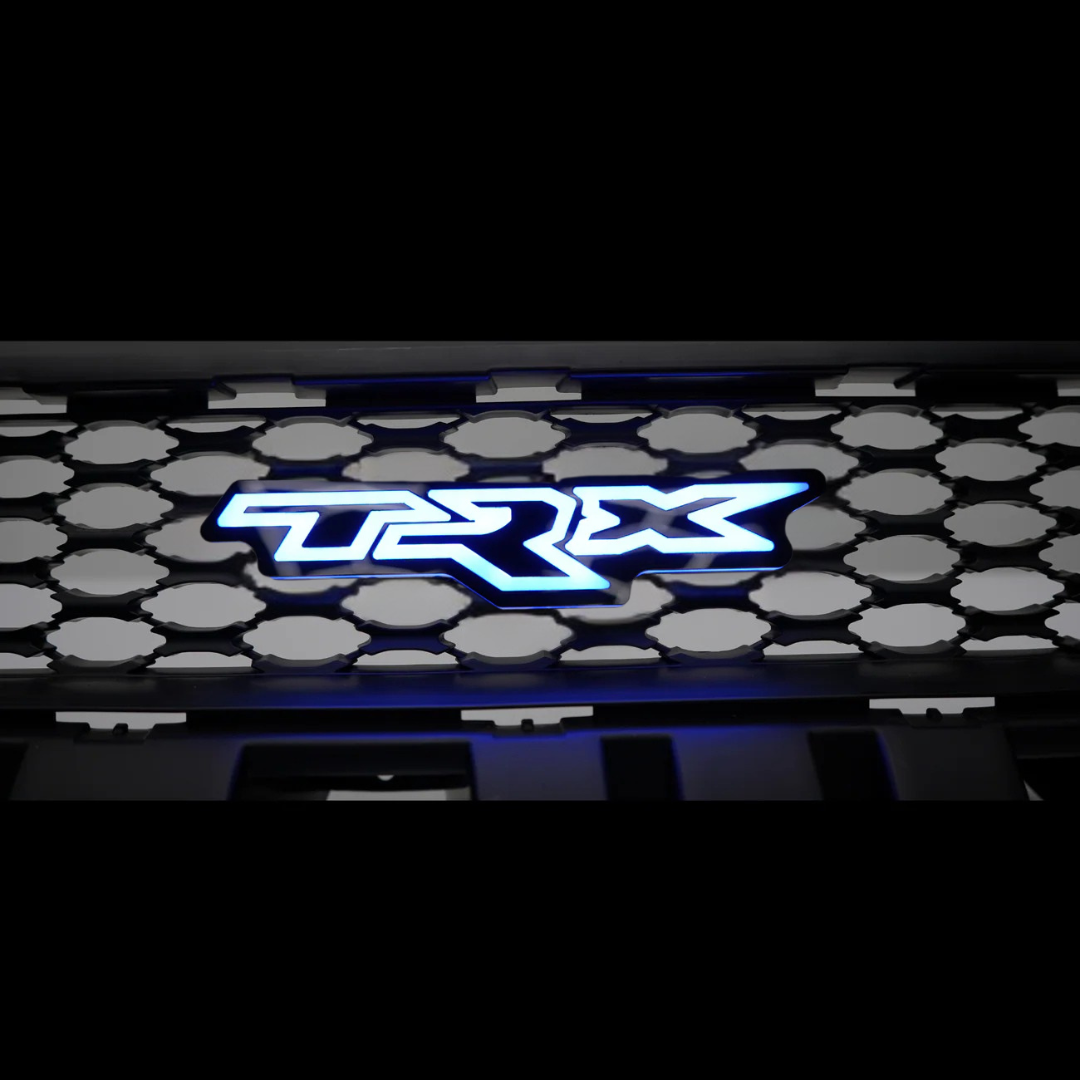

Add an aggressive glow to the front end of your RAM TRX with our TRX LED Badge (Multicolor Flow). This illuminated badge mounts next to the factory RAM emblem (not inside or replacing it) for a clean OEM+ look, with smooth Flow Series effects that hit hard day or night.

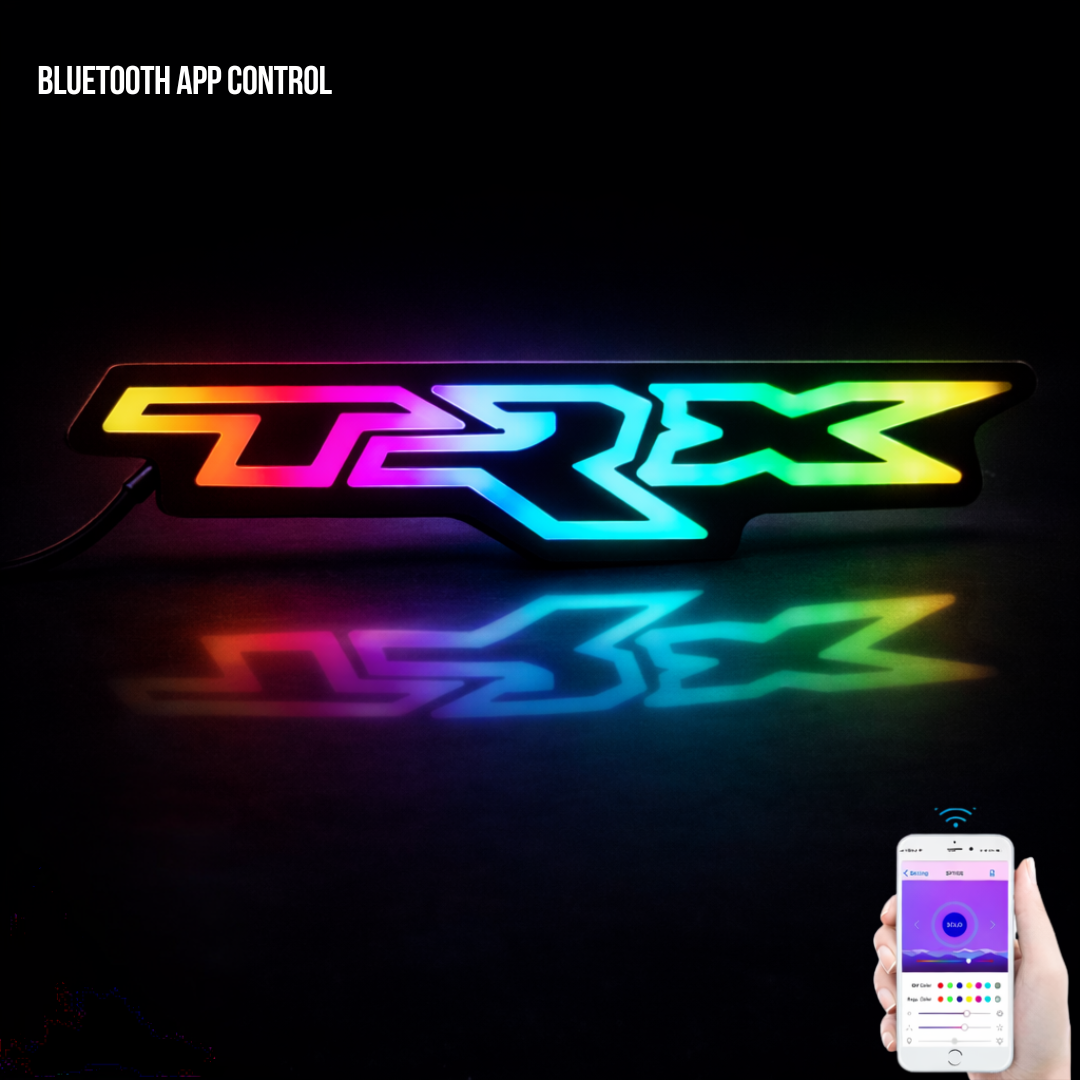

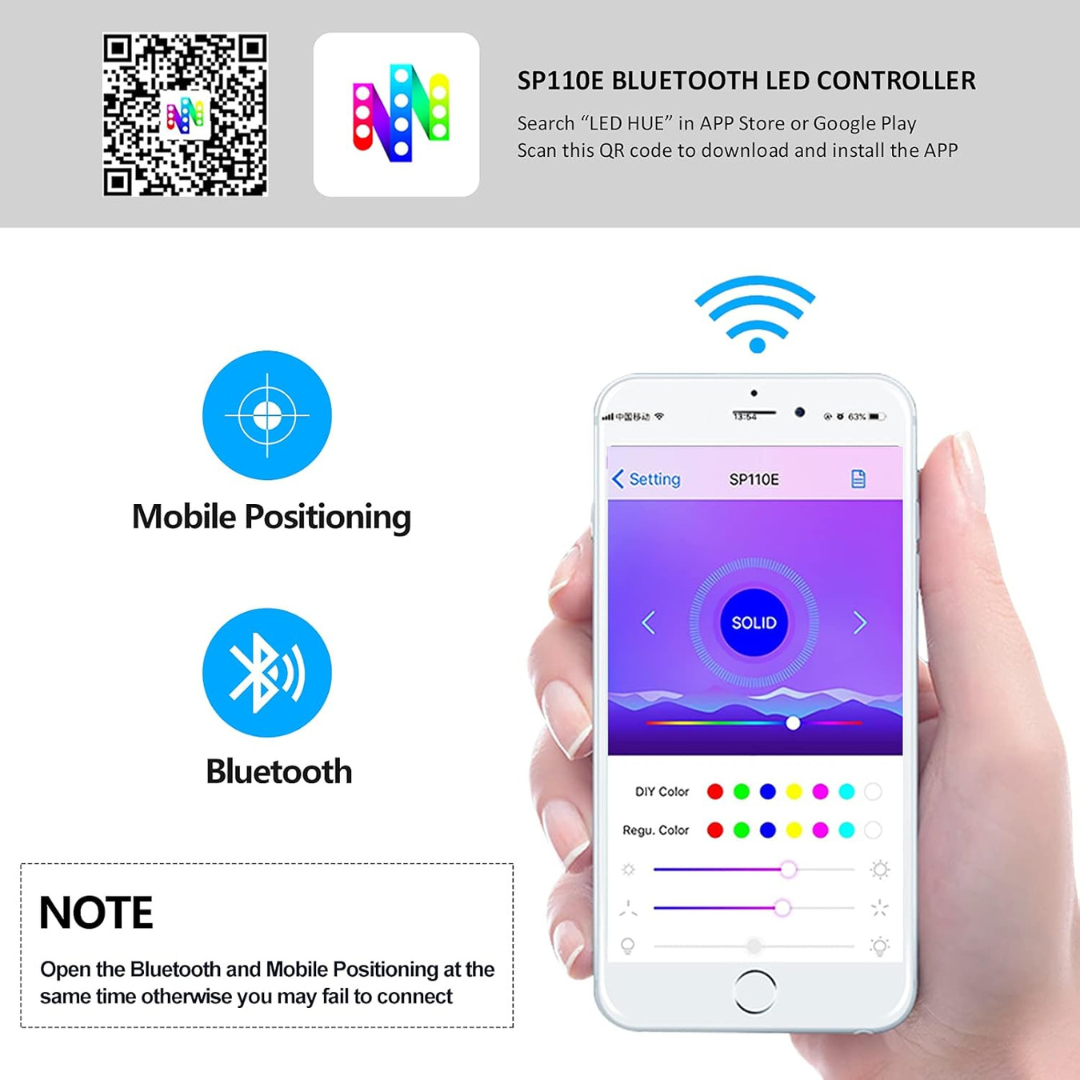

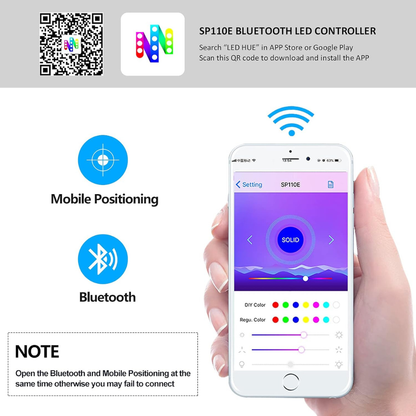

This badge features our RGB Flow Series lighting system with full Bluetooth app control. Compatible with both Apple (iOS 8.0 or later) and Android (OS 4.4 or later) devices. App control only — no handheld remote included.

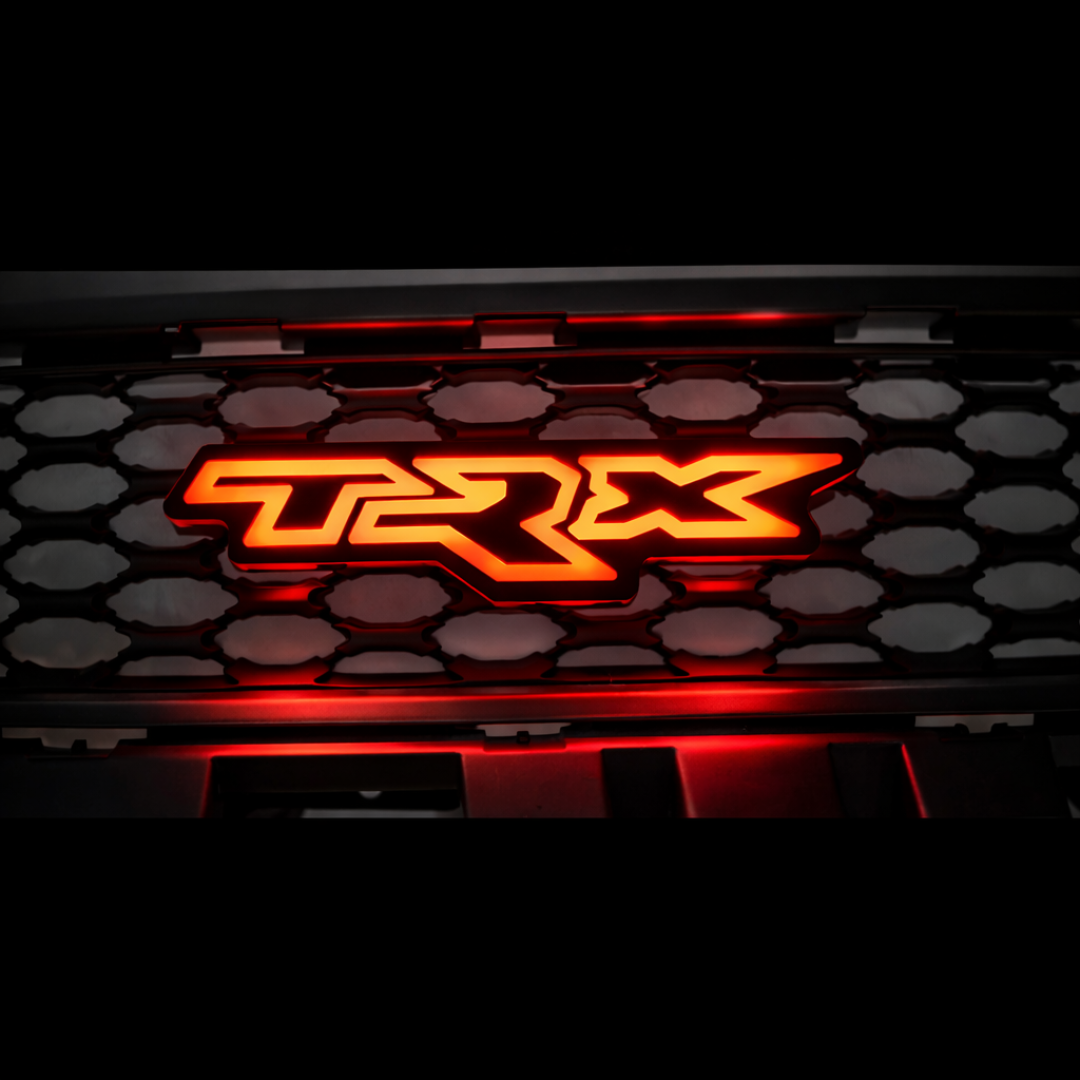

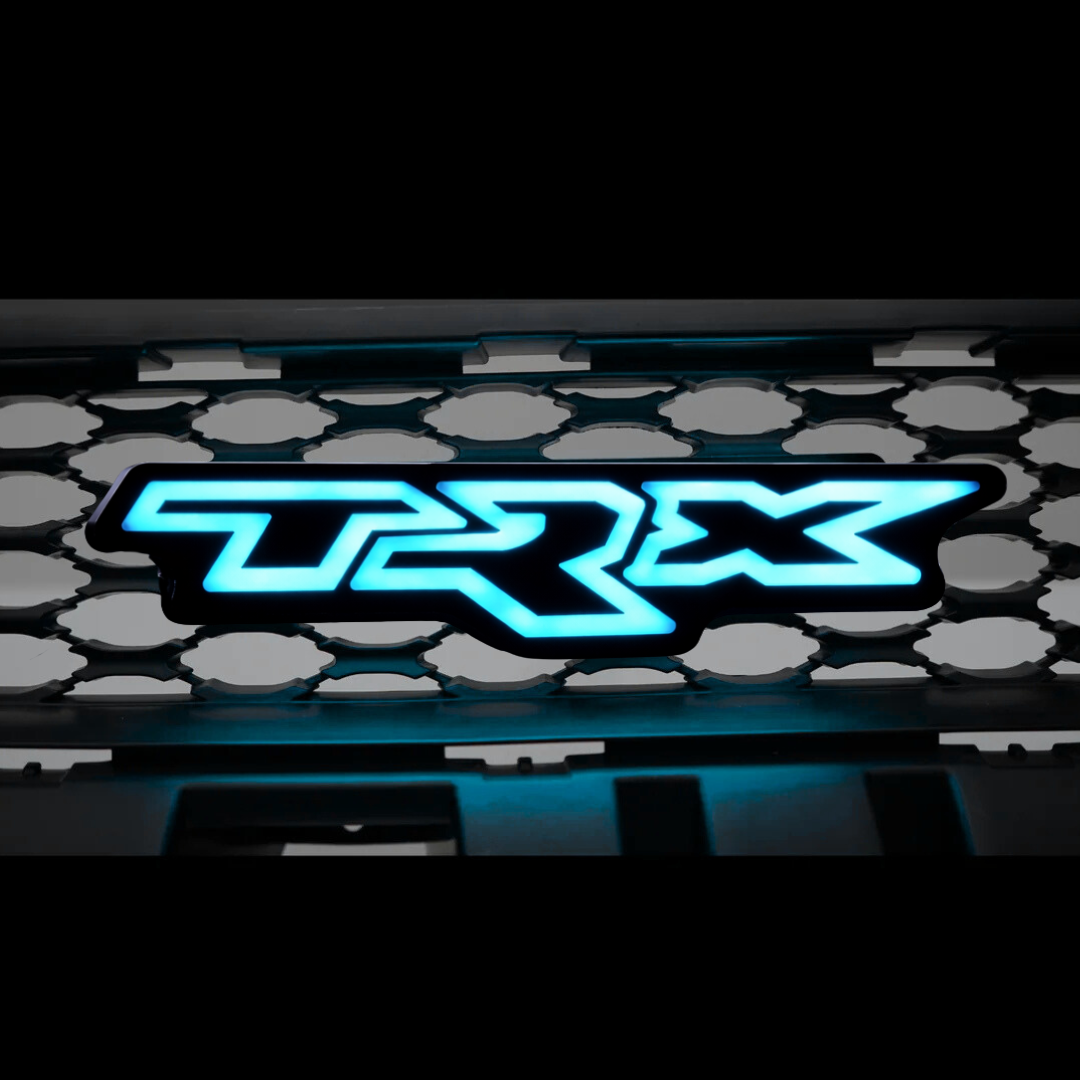

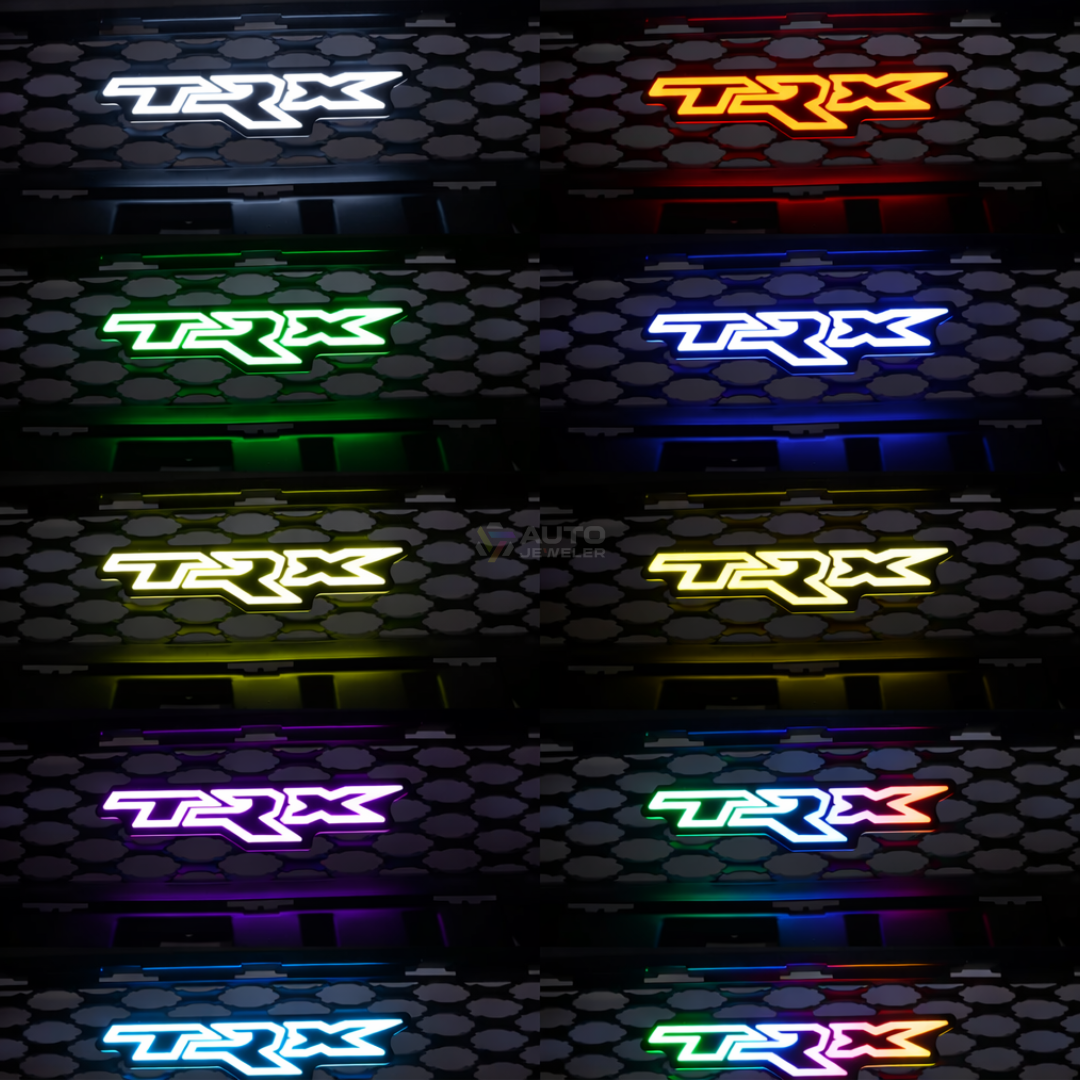

• Full solid color wheel
• 120+ dynamic flow and color-chasing patterns
• Adjustable brightness and speed
• Music sync mode (app dependent)
• DIY custom pattern creator (app dependent)
• Save favorite modes for quick access

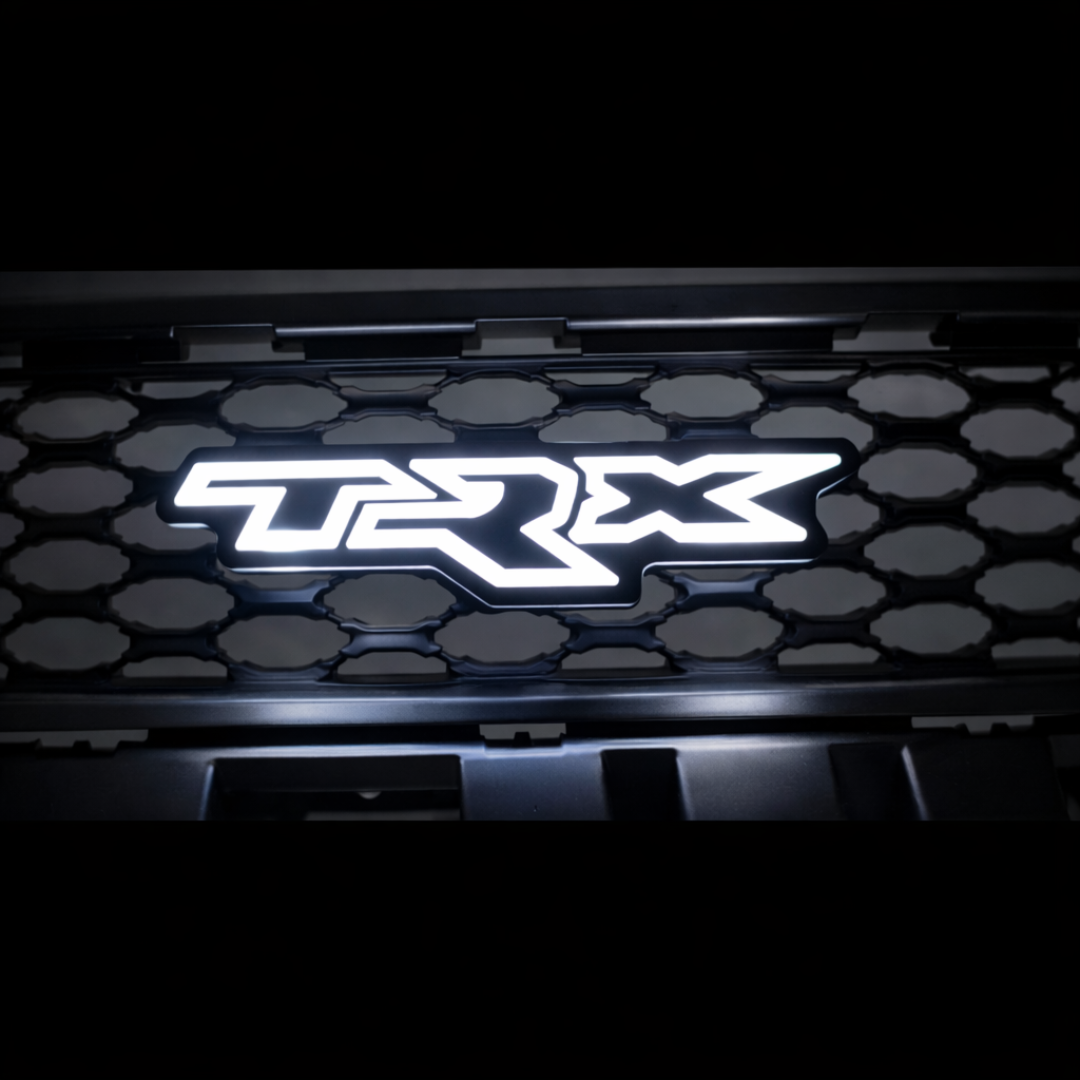

Note: This is RGB (no dedicated white chip). “White” appears as a cool/bluish white (approx. 6500K).

• LED illuminated TRX grille badge (Multicolor Flow)
• Crisp, even glow designed for high visibility

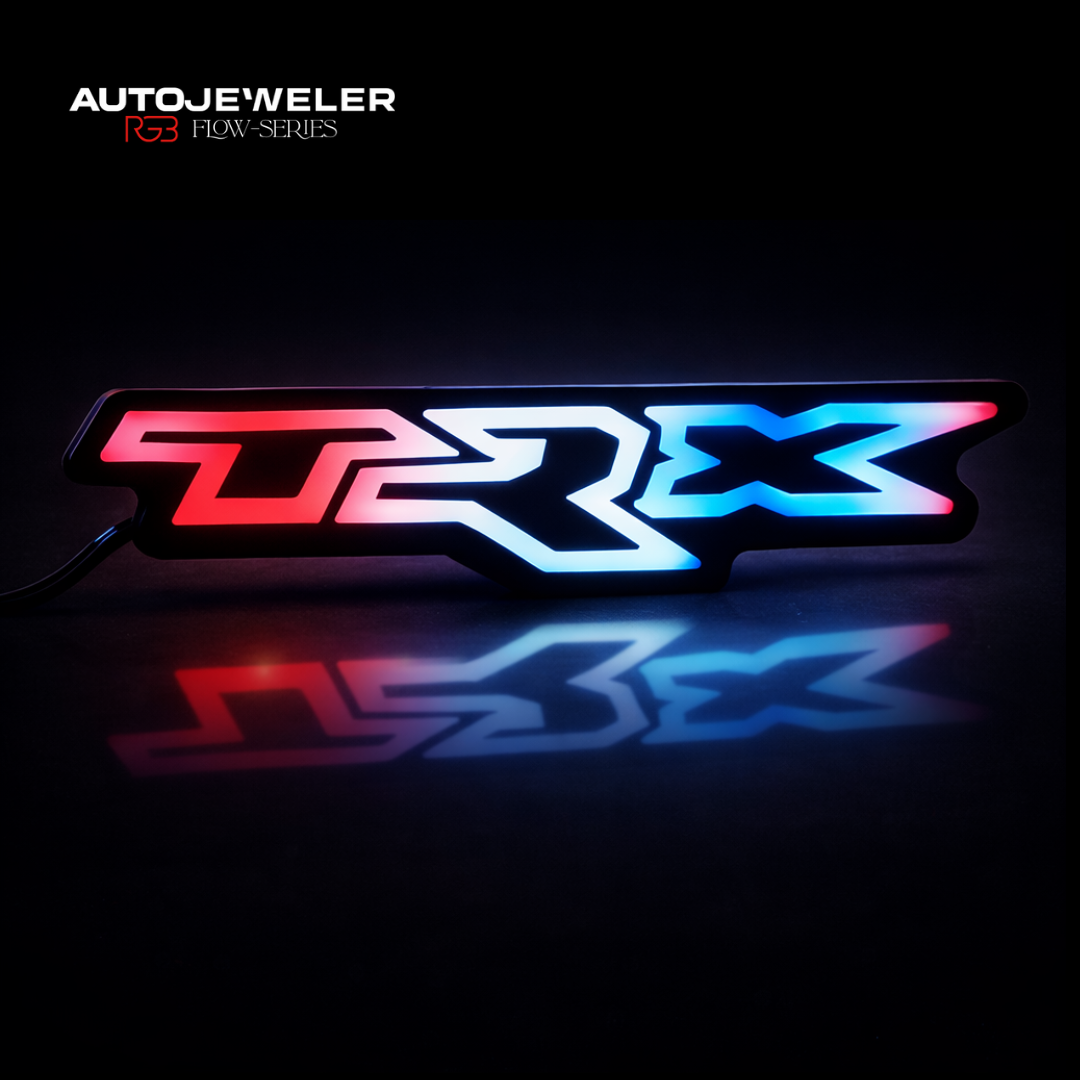

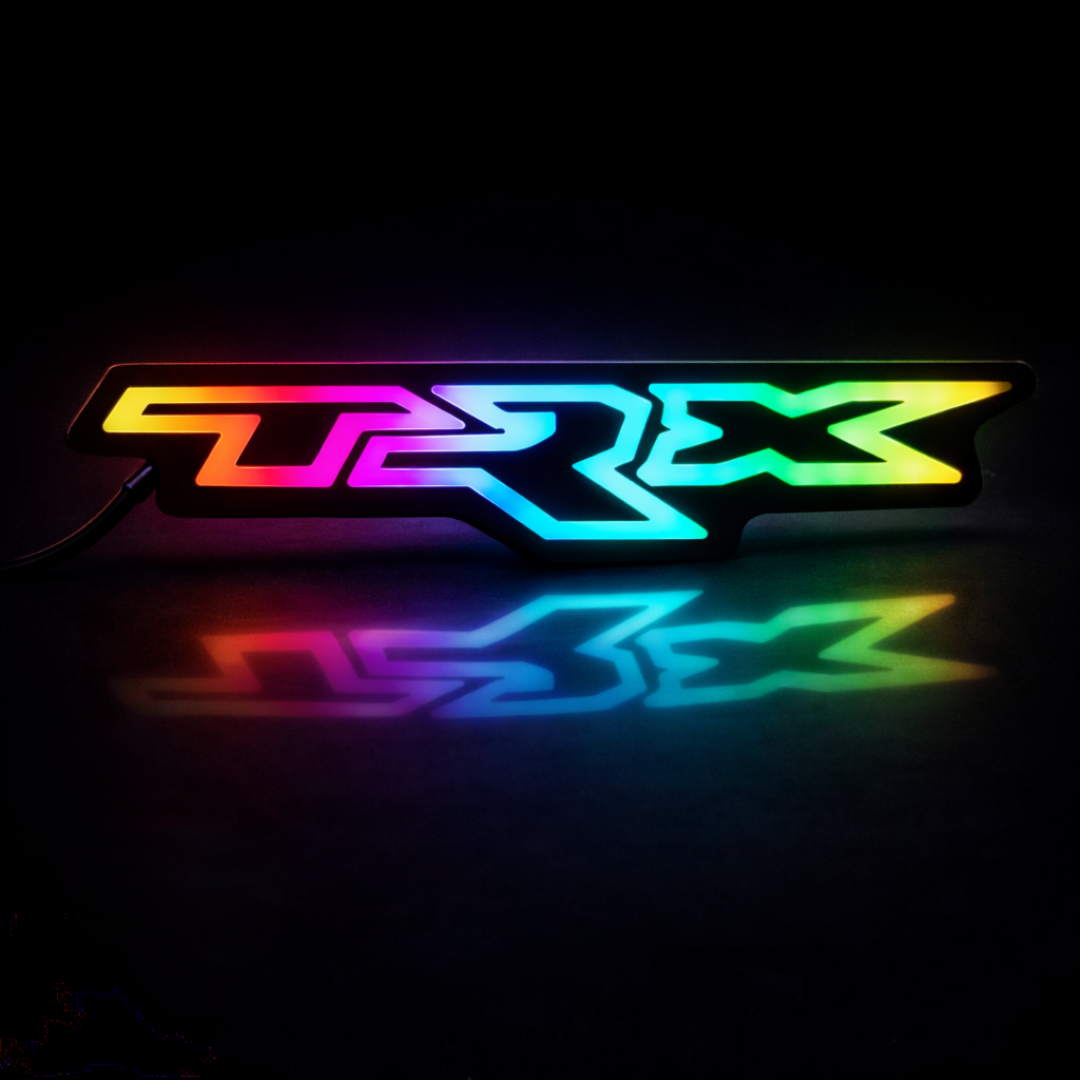

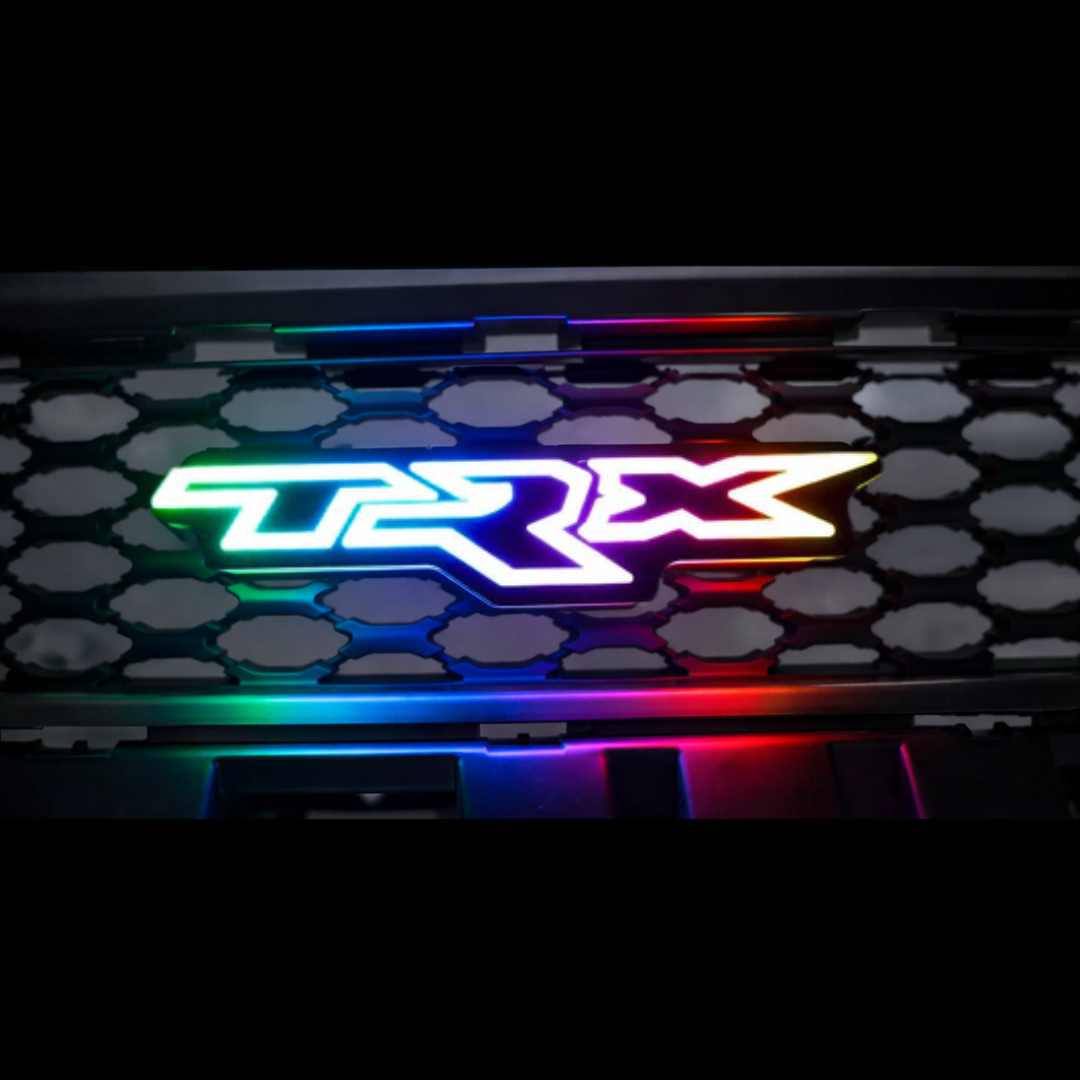

• RGB Flow Series lighting effects
• IP68 waterproof, exterior-grade construction
• Bracket-mounted for secure grille installation
• Plug-and-play wiring setup
• 1-Year Limited Warranty

• RAM TRX (2020–2024)

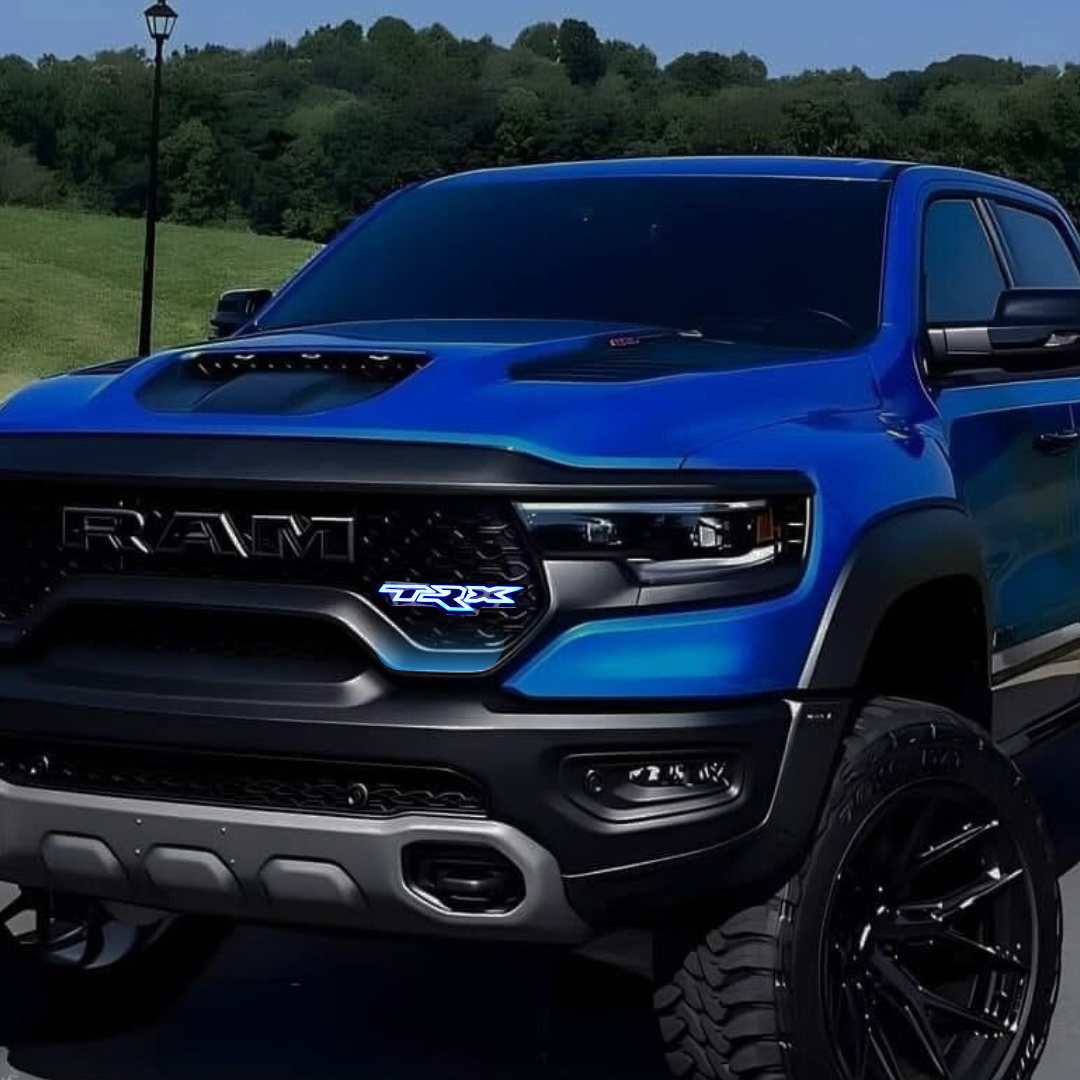

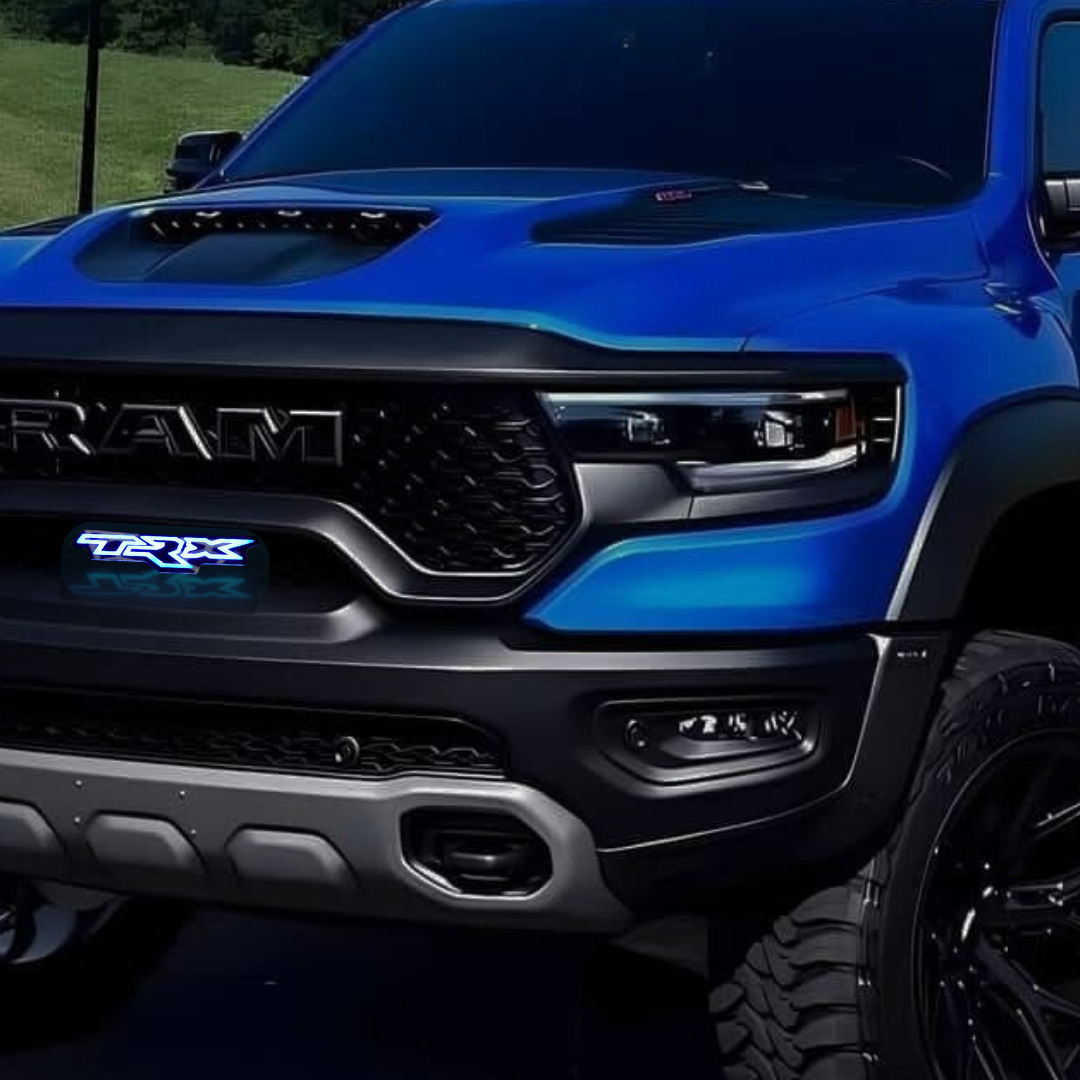

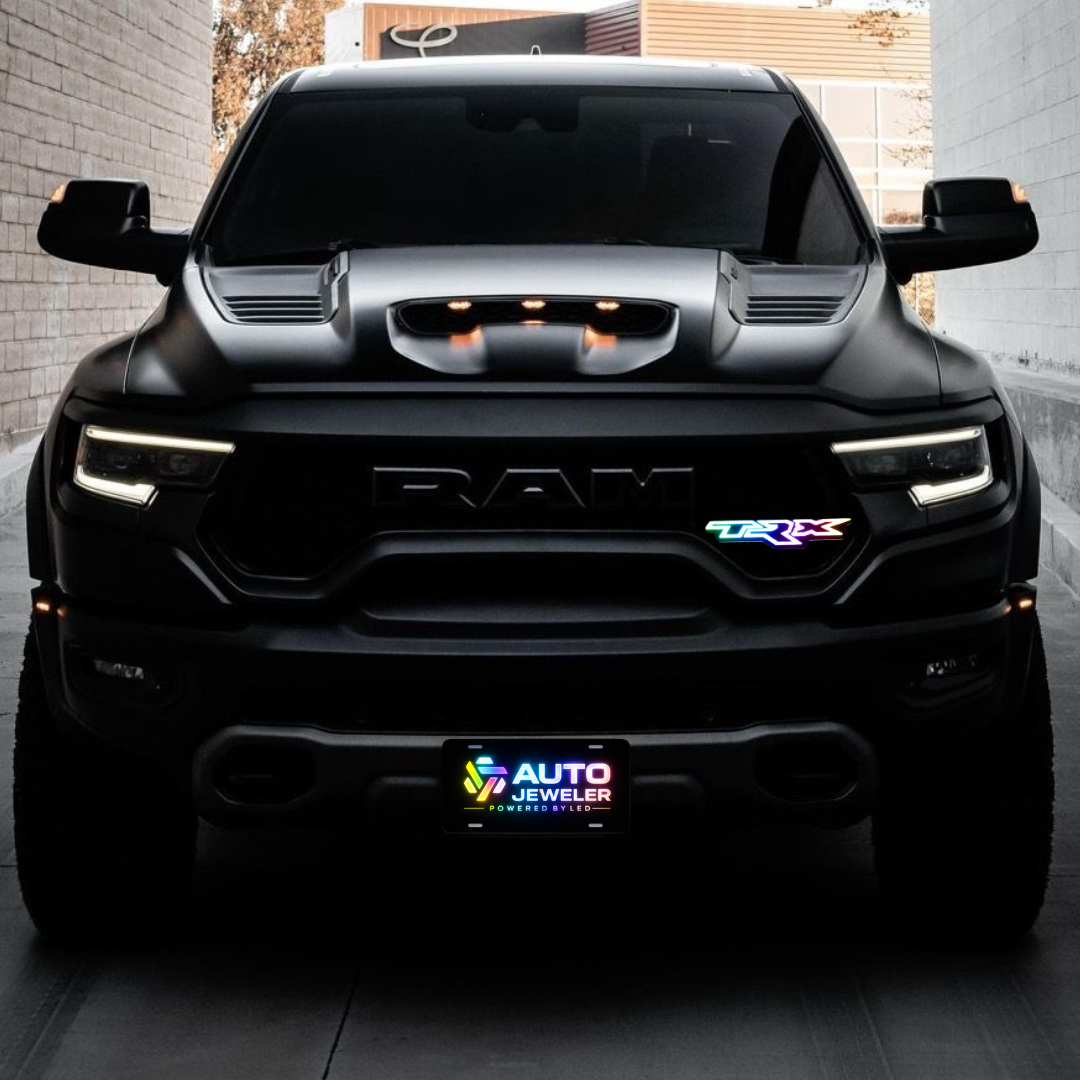

Mounting location: Front grille (mounts next to factory RAM emblem, not in place of it).

Decorative grille lighting upgrade only. Not an OEM replacement emblem.

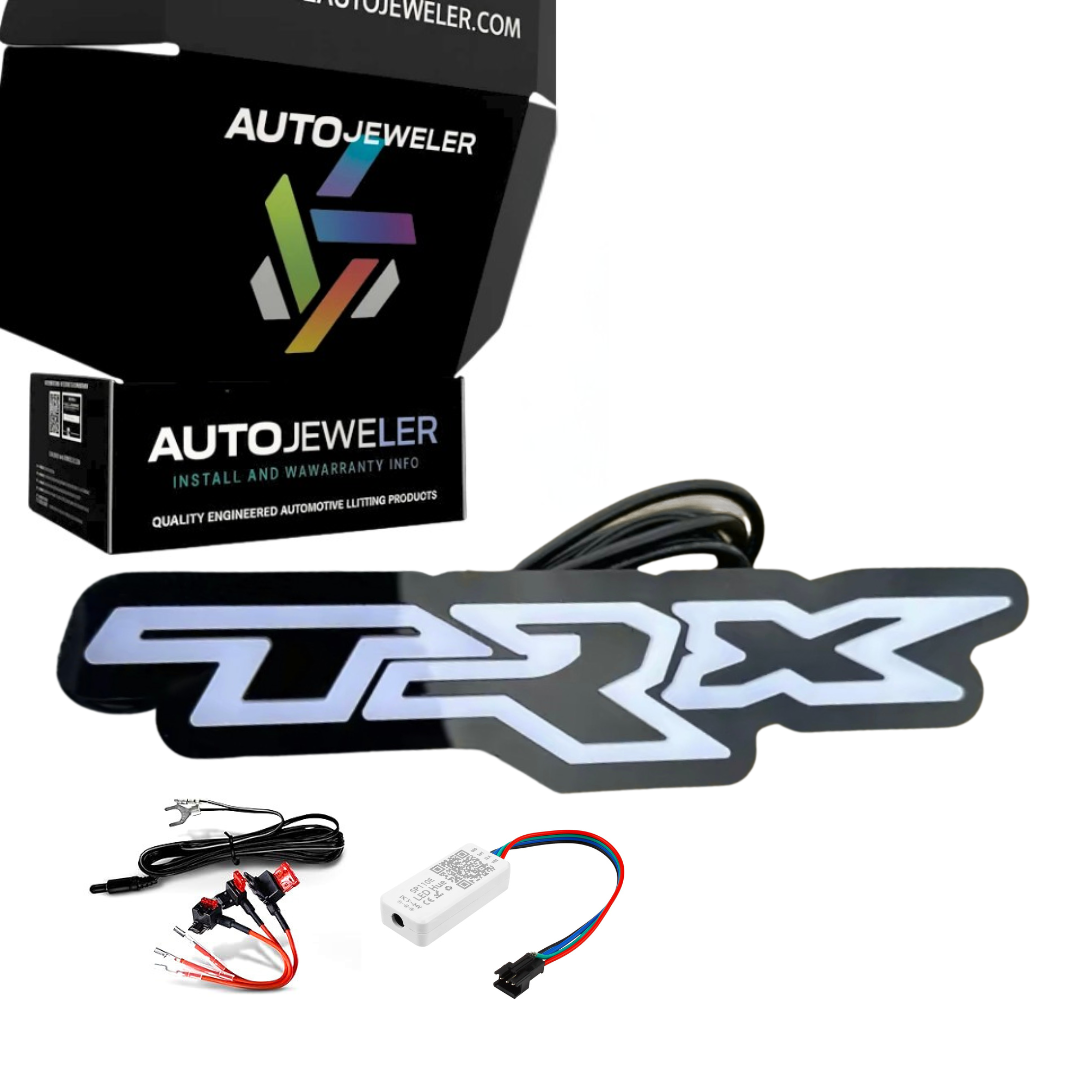

• TRX LED Badge (Multicolor Flow)
• Mounting bracket(s) with hardware
• Plug-and-play wiring harness
• Bluetooth control module (app controlled)
• 3 fuse taps (Micro2, Mini, ATO/ATC)
• Quick-start wiring guide

1. Position badge on grille (next to OEM emblem)
2. Attach bracket behind grille/mesh
3. Tighten mounting hardware
4. Route wiring safely to fuse box or power source
5. Connect power/ground, test lighting, and secure wiring

Wiring: Red → 12V power (fuse box/battery/ignition), Black → ground.

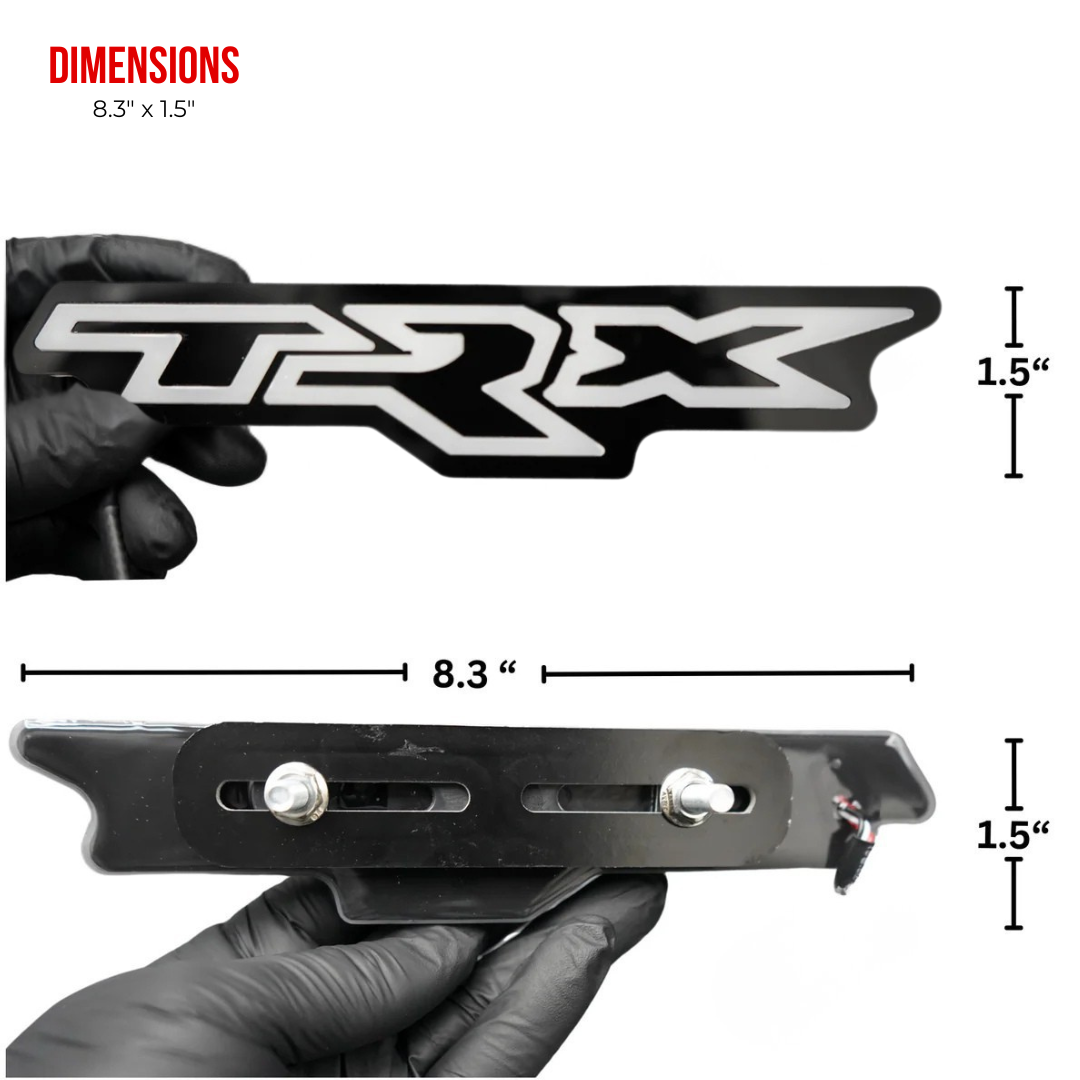

• 8.3" x 1.5"
