⚡ OVERVIEW

Replace, upgrade, or expand your Flow Series lighting setup with an AutoJeweler Flow Series Pro LED Controller.

Choose from three controller options ranging from simple waterproof Bluetooth app control to our 4-output Hybrid Pro system with both smartphone and handheld RF remote control.

All three options are designed for 12V addressable Flow Series LED products and feature a fused automotive power connection for a cleaner, safer installation.

⭐ CHOOSE YOUR CONTROLLER

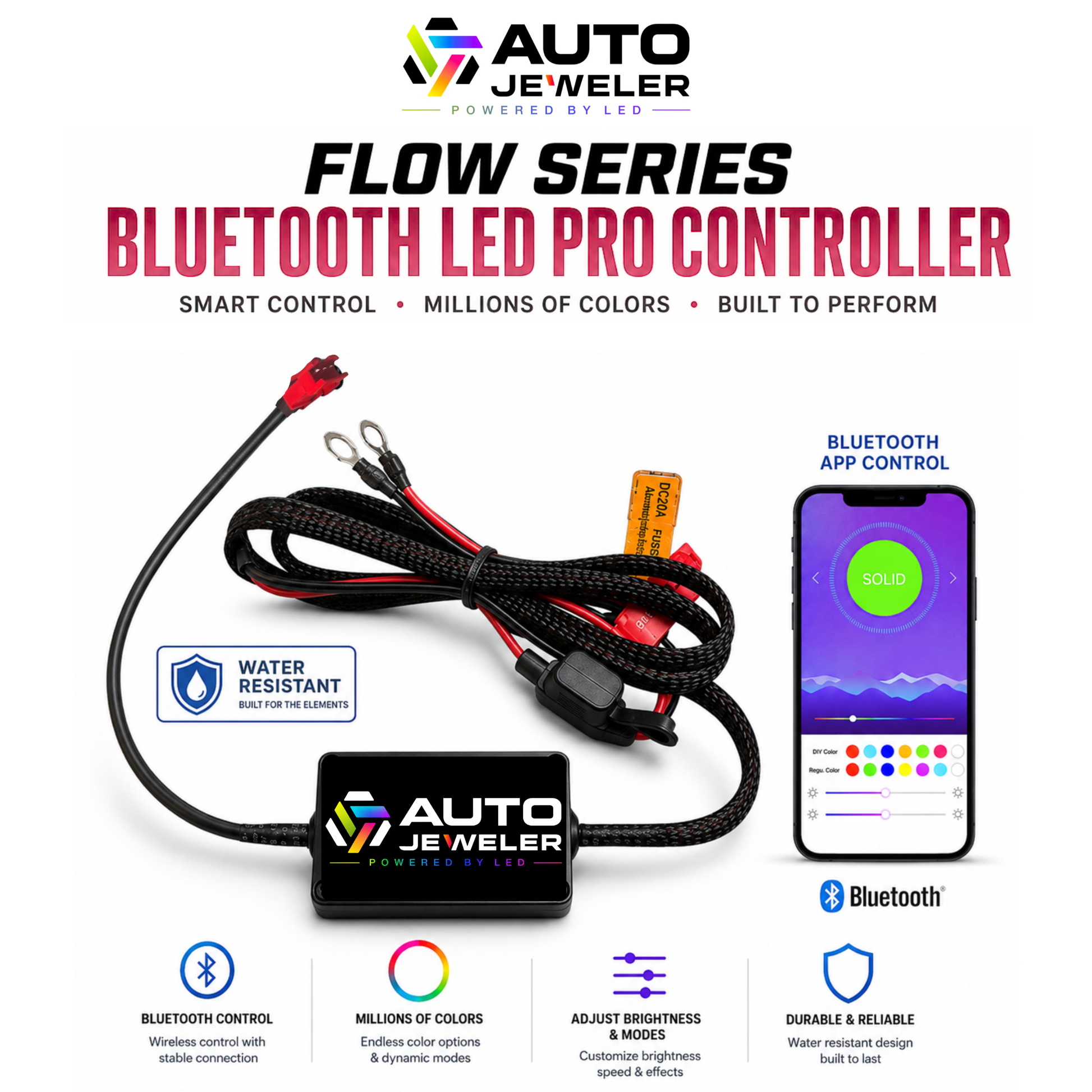

📱 BLUETOOTH PRO CONTROLLER

A compact, weather-resistant Bluetooth controller for customers who want reliable app control without needing a separate handheld remote.

• 1 Flow Series LED output
• Bluetooth smartphone app control
• Waterproof controller housing
• Pre-wired automotive power leads
• Inline fuse protection
• Control colors, effects, brightness, and animation speed
• Ideal as a replacement for compatible Bluetooth Flow Series controllers

Controller platform: Waterproof SP110E-style Flow Series controller

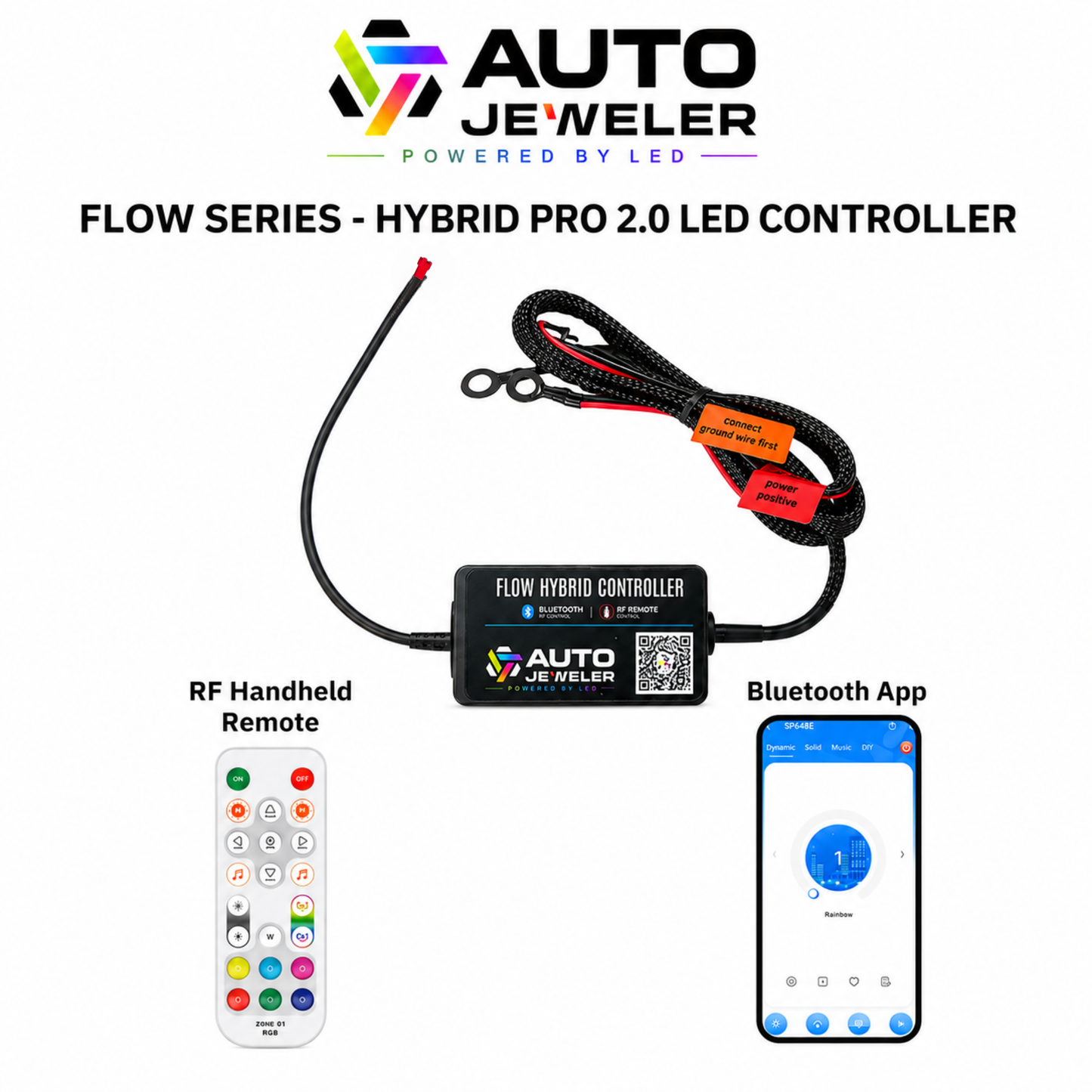

🎮 HYBRID PRO 2.0

Get the convenience of Bluetooth app control plus the speed of a dedicated handheld RF remote.

The Hybrid Pro 2.0 is our recommended choice for a single Flow Series emblem or lighting product when you want two ways to control your setup.

• 1 Flow Series LED output
• Bluetooth smartphone app control
• Included handheld RF remote
• Quick access to colors, brightness, effects, and speed
• Inline fuse protection
• 12V automotive power connection
• No need to open your phone every time you want to change modes

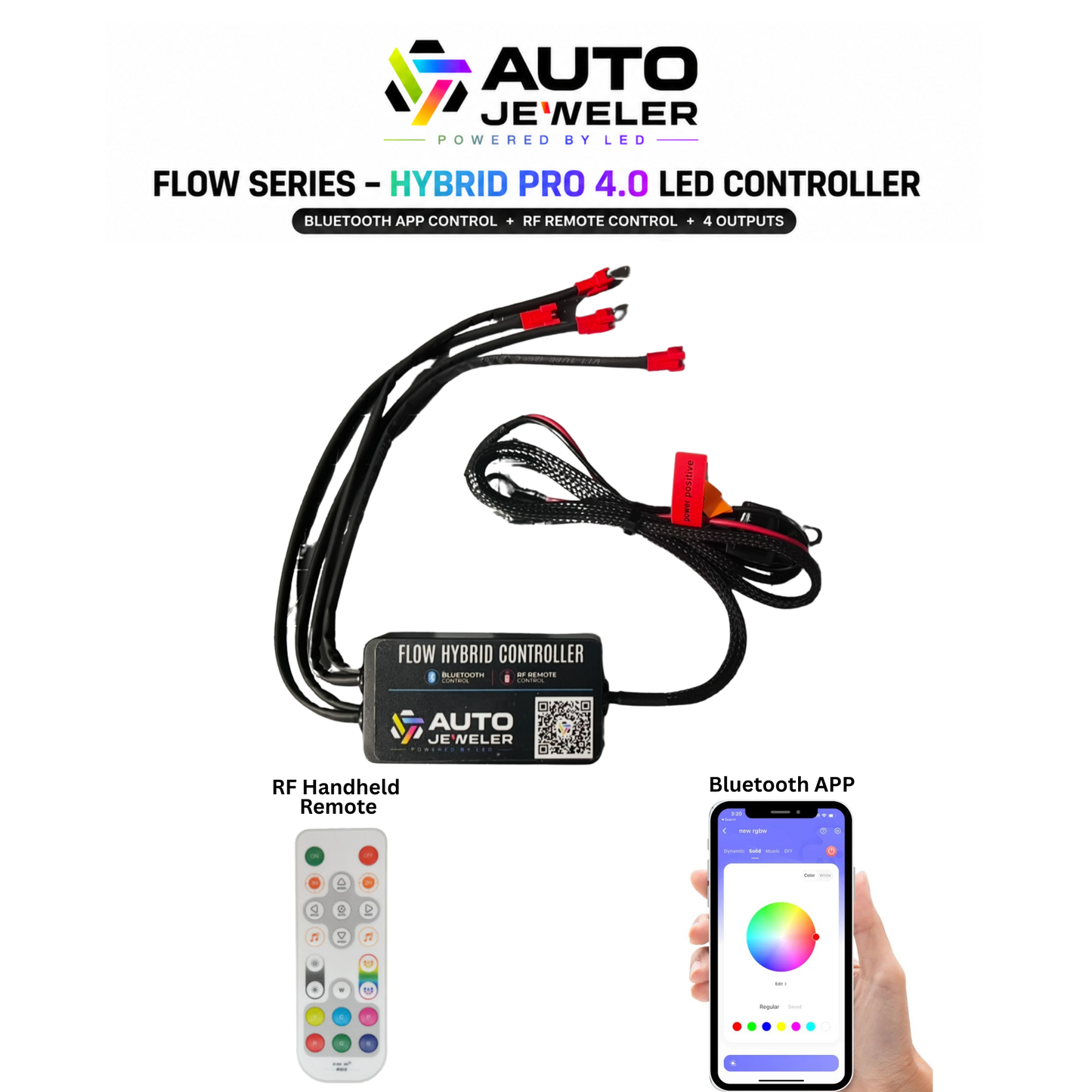

🔥 HYBRID PRO 4.0

Take control of multiple Flow Series products from one controller.

The Hybrid Pro 4.0 combines Bluetooth app control, a handheld RF remote, and four LED outputs so compatible lighting products can be controlled together from one central controller.

• 4 Flow Series LED outputs
• Bluetooth smartphone app control
• Included handheld RF remote
• Control multiple compatible Flow Series products from one controller
• Quick access to colors, brightness, animation speed, and effects
• Inline fuse protection
• 12V automotive power connection
• Ideal for multi-emblem and expanded lighting setups

🌈 FLOW SERIES CONTROL

Compatible setups can access a wide range of addressable RGB lighting functions including:

• Solid RGB colors
• Multicolor Flow Series effects
• Chasing and flowing animations
• Wave, pulse, fade, strobe, and rainbow effects
• Adjustable brightness
• Adjustable animation speed
• Music-responsive modes supported by compatible controller/app configurations
• Customizable effect settings

Available modes and app functions can vary slightly by controller version.

🔌 COMPATIBILITY

Designed for 12V addressable Flow Series LED products.

• Compatible with many AutoJeweler Flow Series LED emblems
• 3-wire/addressable Flow Series applications
• 12V automotive electrical systems
• Replacement or upgrade applications

Important: Flow Series controllers are not automatically interchangeable with every RGB product. Before ordering a replacement controller, verify your product's voltage, connector type, wire configuration, and LED protocol.

These controllers are not intended as direct replacements for conventional 4-pin analog RGB or RGBW controllers.

If you purchased your lighting product from AutoJeweler and are unsure which controller you need, contact us before ordering and we can help identify the correct option.

📦 WHAT'S INCLUDED

Bluetooth Pro Controller

• 1× Waterproof Bluetooth Flow Series controller

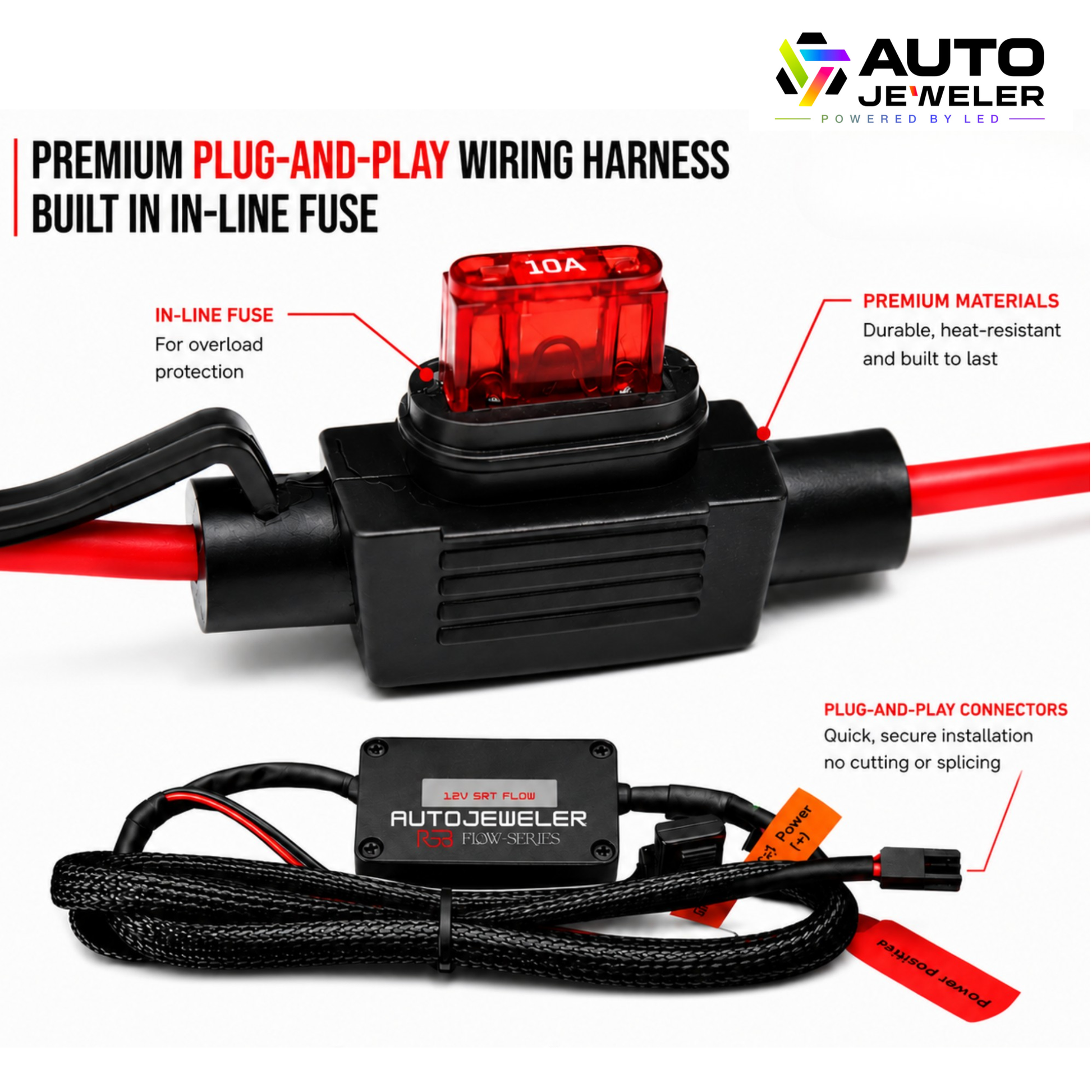

• 1× Pre-wired power harness with inline fuse

Hybrid Pro 2.0

• 1× Hybrid Pro 2.0 Flow Series controller
• 1× Handheld RF remote
• 1× Pre-wired 12V power harness with inline fuse

Hybrid Pro 4.0

• 1× Hybrid Pro 4.0 Flow Series controller
• 1× Handheld RF remote
• 4× Flow Series LED outputs
• 1× Pre-wired 12V power harness with inline fuse

💎 QUICK SPECS

• Brand: AutoJeweler
• Product Type: Flow Series LED Controller
• Operating Voltage: 12V DC automotive system
• Lighting Type: Addressable RGB / Flow Series
• Bluetooth Pro Outputs: 1
• Hybrid Pro 2.0 Outputs: 1
• Hybrid Pro 4.0 Outputs: 4
• Bluetooth Control: Yes — all options
• RF Remote: Hybrid Pro 2.0 and Hybrid Pro 4.0
• Fuse Protection: Inline fuse
• Application: Automotive Flow Series lighting
• Warranty: 1-Year Limited Warranty

🔧 INSTALLATION OVERVIEW

• Disconnect vehicle power before wiring
• Connect the Flow Series LED product to the controller output
• Connect the fused positive lead to an appropriate 12V power source
• Connect ground to battery negative or a suitable chassis ground
• Secure the controller away from excessive heat and moving components
• Restore power and pair the controller with the appropriate Bluetooth app
• Hybrid Pro users can also operate the system with the included RF remote

Always verify polarity and connector compatibility before applying power.

❓ WHICH CONTROLLER SHOULD I CHOOSE?

Choose Bluetooth Pro if:
You need a simple 1-output replacement controller and are happy controlling your lighting through your phone.

Choose Hybrid Pro 2.0 if:
You have one Flow Series product and want both Bluetooth app control and a handheld remote.

Choose Hybrid Pro 4.0 if:
You want the most flexible option or plan to operate multiple compatible Flow Series products from one controller.

---
